Table

The Table component is an easy way to display tabular content on a page without having to work with HTML or CSS. The Table component can be used for simple, small tables without any additional functionality. It can also be used for larger tables with search, sort and filter options. The Table component is intended to provide text information in a fully responsive table with MSU brand styling.

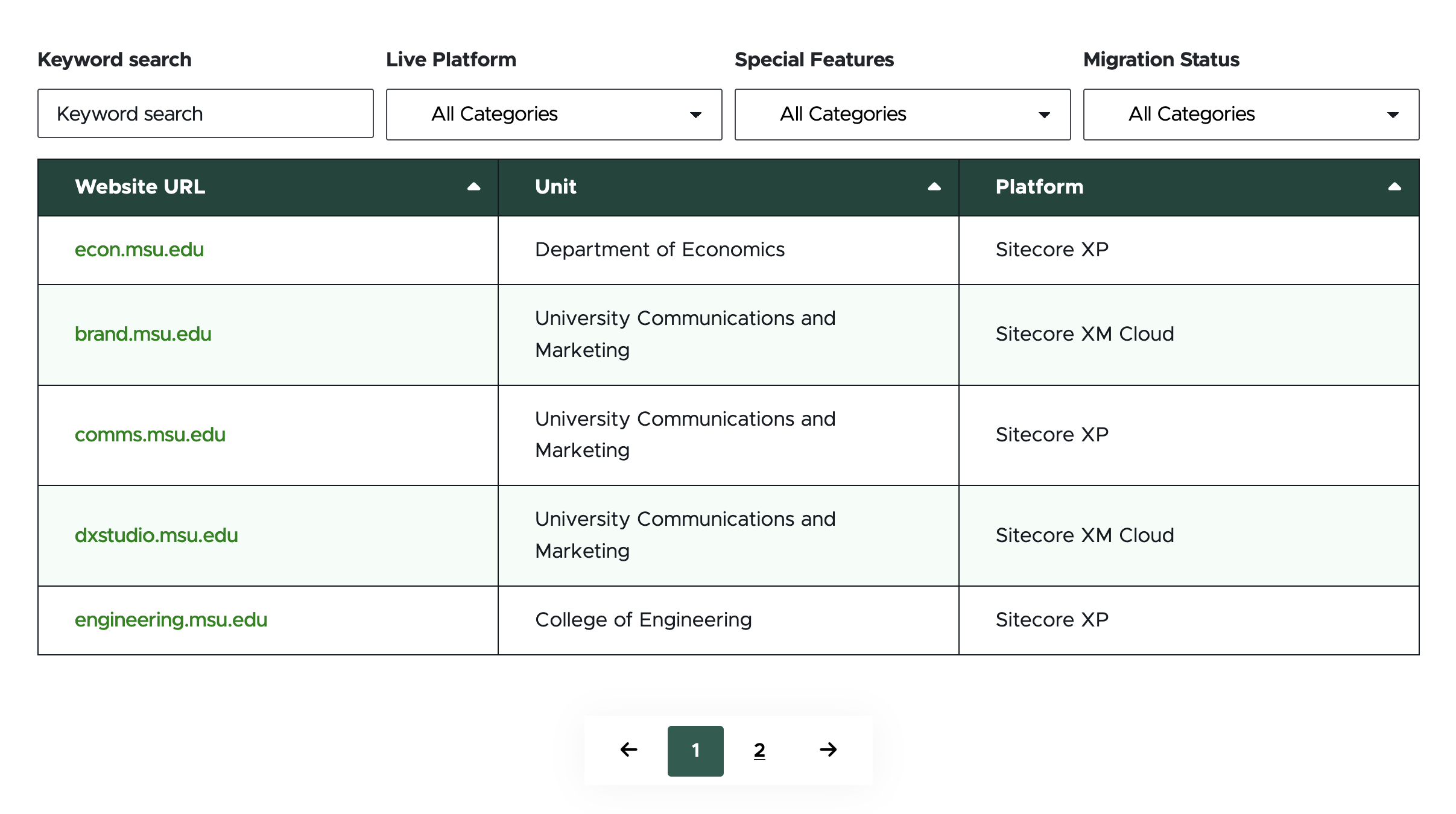

A screenshot of a table with a search box and category filter options
Figure 1: Example of a Table component.

Component Information

Benefits

  • The Table component is used to present information in a table format.
  • Tables can contain different amounts of content and have different levels of functionality.
  • Table components can be used in the main body area of pages and in the left column of Two-Thirds Sublayout containers.

Template Data

Component fields in Page Builder canvas:

Item name (single-line text)

  • Text used for the Table name when creating the Table data.
  • By default, adding a Table to the page creates a Table Categories folder and a first Table row, titled “Table Row 1.” This row can be renamed.

Table cells (multi-line text)

  • This is the same field as in Page Builder.
  • This field allows for some basic HTML formatting tags, including <b></b> for bold, <i></i> for italic and <a href=””></a> for links.

Manage Items options in right-side menu:

+ Add new (button)

  • Add additional table row(s)

Advanced Styling options in right-side menu:

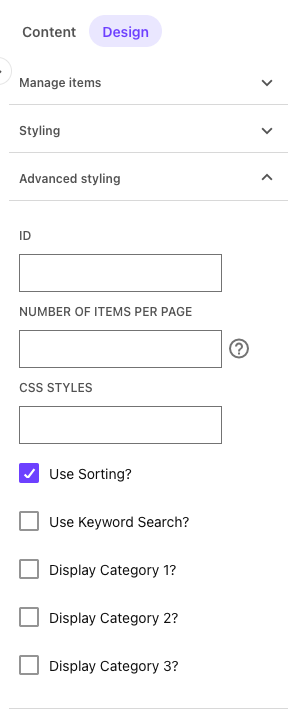

Use Sorting? (check box)

  • When checked, table columns are sortable.

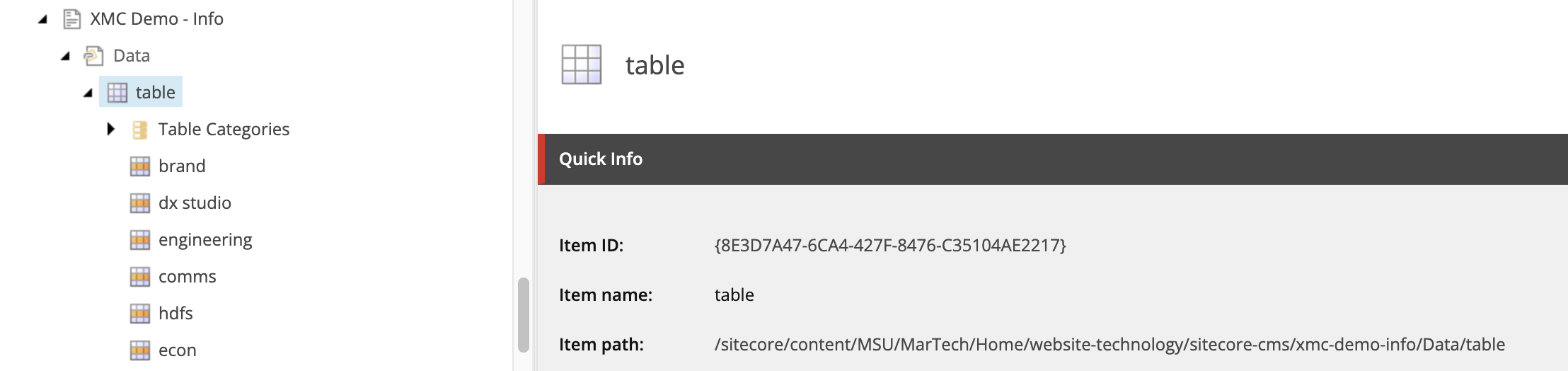

A screenshot of Content Editor's content tree with a table item selected
Figure 2: Table item selected in the Content Tree to reveal settings panel.

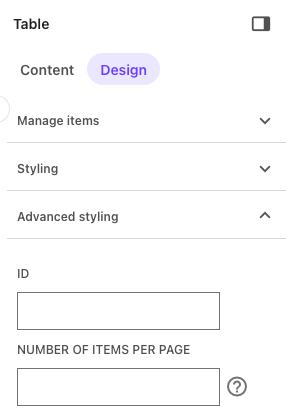

Number of Items per Page (single-line text)

  • This field accepts numbers only.
  • The default value is blank, which means there will be no pagination.
  • If a number is entered, it will limit the number of Table rows per page to this number.

Number of Columns to Display (single-line text)

  • This field accepts numbers one to eight only.

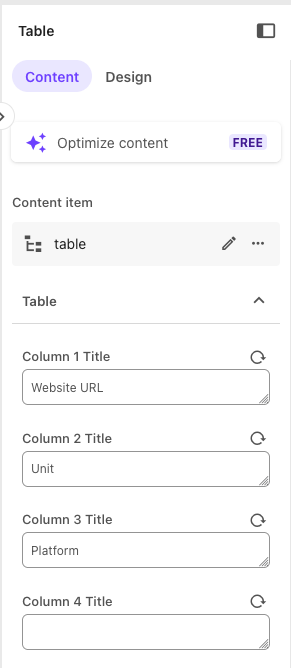

Column # Title: (single-line text)

  • Text in this field creates the Column header for the numbered column.

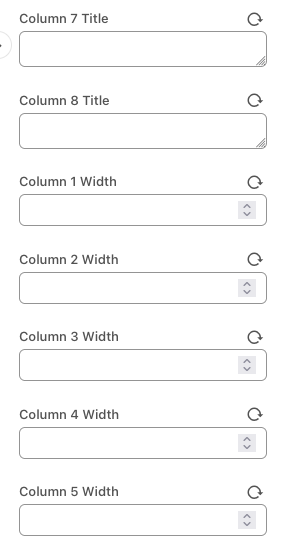

Column # Width (single-line text)

  • This field accepts numbers only. The number sets the column’s width, represented as a percentage of the whole.
  • The default value is blank.
  • When all Column # Width fields are blank, the width of the Table columns will be equally divided. For example, if there are four columns each column will display at 25% of the full table width.
  • When numeric values are added to the Column # Width fields, they represent the percentage of the width the column will take. If adding values to the fields, each column in use must have a number, and these numbers must add up to 100. For example: If using four columns, the column widths could be 20, 20, 20 and 40, but could not be 20, 20, 20 and blank.

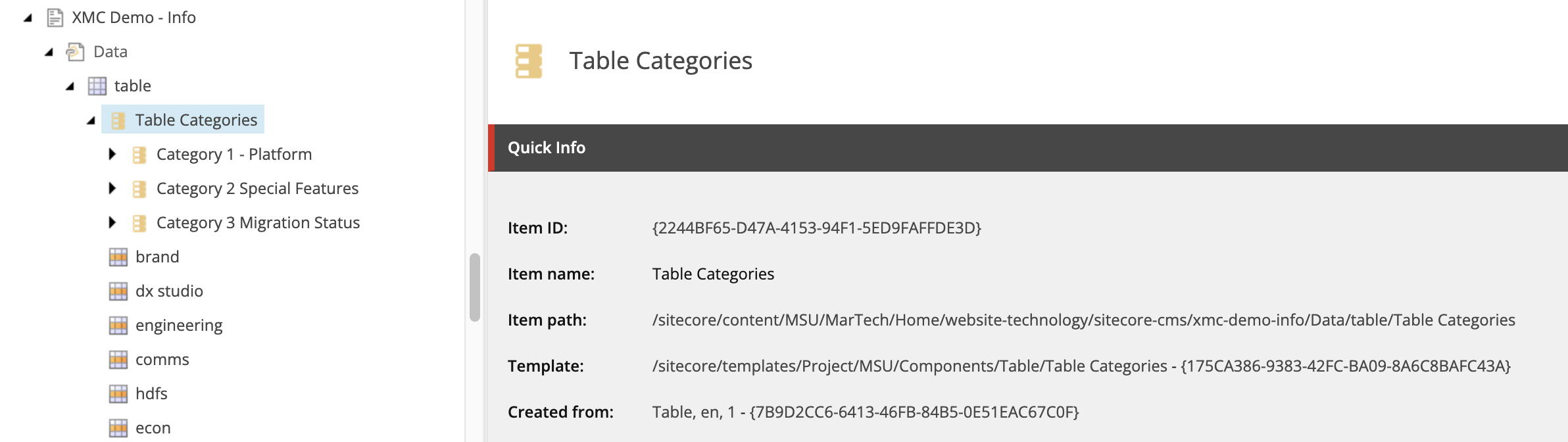

A screenshot of Content Editor's content tree with a table categories item selected
Figure 3: Table Categories item selected in the Content Tree to reveal settings panel.

Table Categories item in the Content Tree

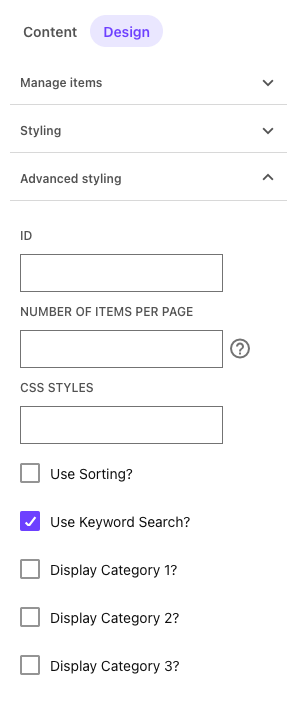

Display Keyword (check box)

When checked, the component will display the keyword search field above the Table.

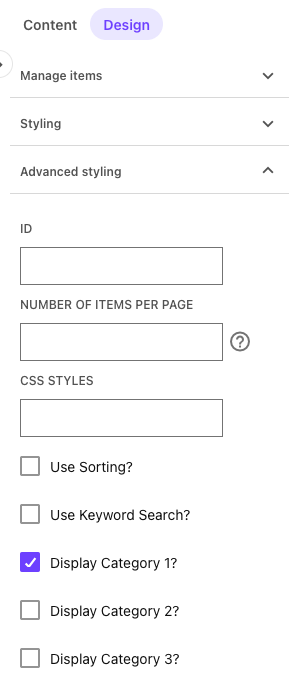

Display Category 1 / 2 / 3 (check box)

When checked, the component will display the corresponding category filter above the Table.

Specific Category items in the Content Tree, under Table Categories:

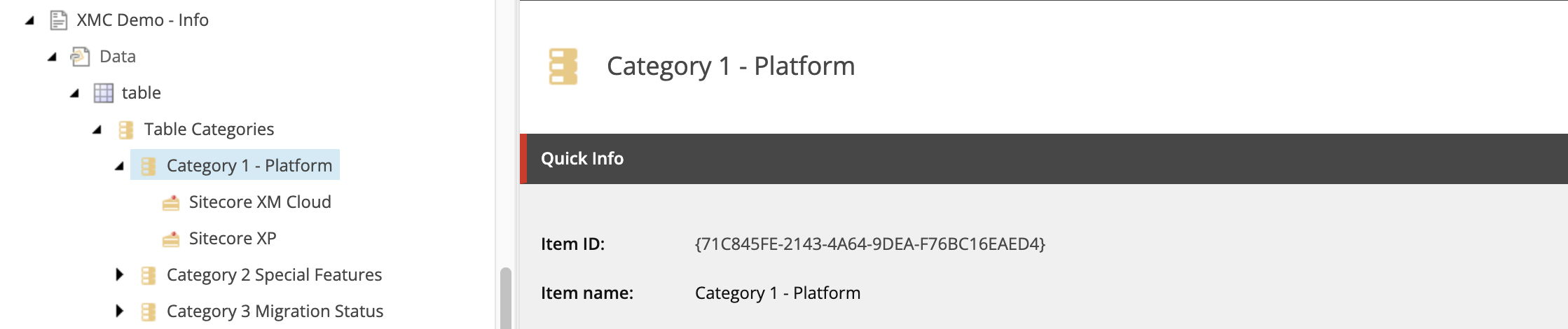

A screenshot of Content Editor's content tree with a specific category item selected
Figure 4: Category item selected in the Content Tree to reveal settings panel.

Title (single-line text)

Category title text that displays above Category filter for the numbered category

Category value item selected in the Content Tree, under a Category:

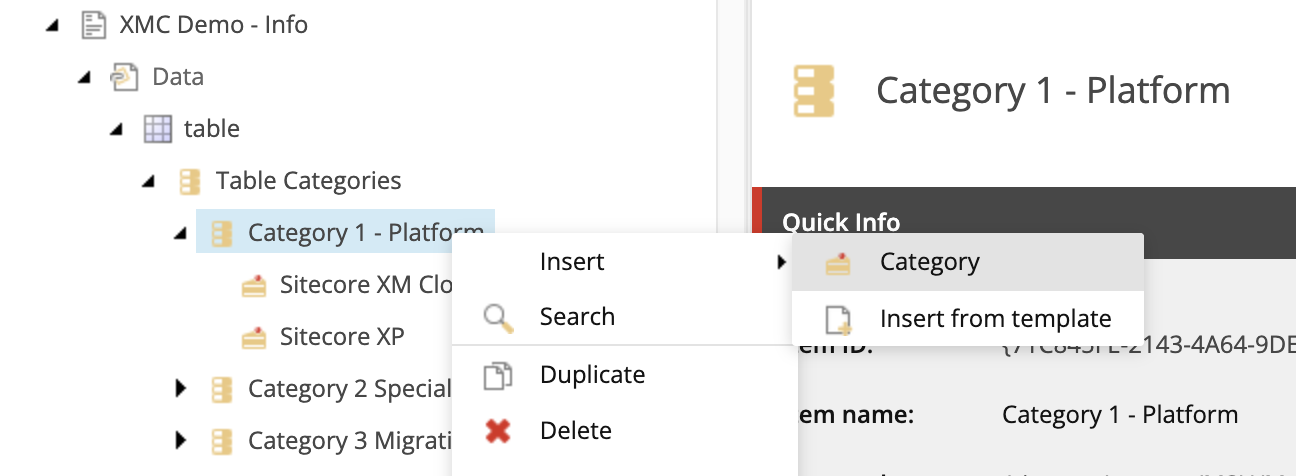

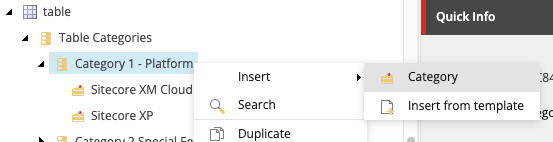

A screenshot of Content Editor's content tree with a table category insert option selected
Figure 5: Inserting a “Category” within a numbered Category adds selectable values to the Category.
A screenshot of Content Editor's content tree with a specific category value selected
Figure 6: Clicking on the Category value reveals the settings panel.

Value (single-line text)

  • Category value label

Table Column # (multi-line text)

  • These text fields correspond to the cells in the table for the row. The number corresponds to the table column, reading left to right.
  • Data entered here corresponds to the same fields in Page Builder. It is up to the content author which interface they prefer. Page Builder allows for viewing the table in a visual format while entering content.
  • These fields allow for some basic HTML formatting tags:
    • <b></b> for bold
    • <i></i> for italic
    • <a href=””></a> for links
  • Category 1 / 2 / 3 (selection field)
    • Assign desired category values to the table row.
    • To assign, click the category value in the “All” panel on the left for the appropriate category and click the > icon to move it to the “Selected” panel.

Frequently Asked Questions

A table can have an unlimited number of rows. If including more than twenty rows, using pagination is recommended so the page is not too long.

A table can have one to eight columns.

Table cells can include text with limited HTML styling (bold, italic and link).

The Table component is added to the page in Page Builder. The majority of the initial setup is done in Content Editor. Once the Table is configured as desired, content authors can edit table cell text in Page Builder.

Instructions for Use

In Pages:

  1. Select the page in the Content Tree. The page must use a basic Page or Two-Thirds Page layout.
  2. Click the “+” button in any full-width area Placeholder box below the Breadcrumb links.
  3. Select Table component from list.

Alternate method:

  1. Click Components tab at top of the Content Tree.
  2. Locate Table component.
  3. Drag the Table component to any empty full-width or left column placeholder area of the page below the Breadcrumb links.

Assign data to the Table component:

  1. In the Assign content item window, choose the component data to use:
    1. For existing components, select them from the page’s Data folder or from the appropriate shared folder.
    2. For new components, select “+”, type in the component title and hit Enter.
  2. Once the component data is selected, click on the Assign button in the lower right corner.

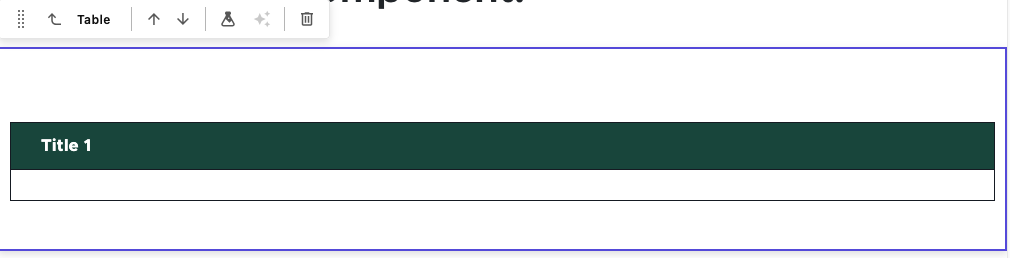

When added to the page, the Table component has a Categories folder and an initial Table Row with one cell.

Table settings must be configured using Content Editor.

In Pages:

  1. Ctrl + click the Content Editor link in the instruction bar of the new Table component on the page. Open Content Editor in a new tab.

In Content Editor:

  1. If the Table component does not appear in the Content Tree, close the page’s Data node and expand it again to refresh the Content Tree. Then in the Content Tree, expand Content > MSU > sitename > Home > page name > Data or wherever the component was added.
  2. Locate and expand the Table component.

Set Table level properties:

  1. Select the main Table item in the Content Tree.
  2. If desired, change the default Number of Items per Page.
    1. The default is blank, with no pagination.
    2. If the table will be long, enter a number here to add pages and limit the rows displayed per page. Rows will be limited to the number entered in the field.
  3. If desired, change the Number of Columns to Display.
    1. Select a number from one to eight.
  4. If desired, add column titles in the designated column title field(s) for columns being used.
  5. If desired, change the column width for the columns being used.
    1. A default setting (blank fields) results in equally divided columns.
    2. If numbers are added, a number must be added to represent the percent of total width assigned to each column in use, and the numbers must total 100.

Set Table Category properties:

  1. Select the Table Categories item in the Content Tree.
  2. If desired, enable (or disable) table filter and search settings by checking or unchecking the box under the Filters section.
    1. When Display Keyword is checked, the Table will display a keyword search box above the Table that searches text in Table cells.
    2. When Display Category 1, Display Category 2 or Display Category 3 are checked the Table will display that category filter(s) above the Table.
  3. If using any of the Categories:
    1. Select the specific Category item in the Content Tree.
    2. Edit the Title field text to name the category.
    3. Right-click on the Category (i.e., “Category 1”, “Category 2” or “Category 3”) in the Content Tree and select Insert and Category on the flyout menu to add a value to the category. Repeat as needed.

Quick tip: Entering a title for the Category will update the category item name in the Content Tree while retaining the category number for reference to the visibility setting checkboxes in the Table Categories properties panel. These names can be shortened by right-clicking on the item and choosing Rename from the pop-up menu.

Quick tip: You can assign multiple values within the same category to a row. This allows the row to appear when the filter dropdown is selected for different values within the same category filter.

Reminder: After making any changes in Content Editor, click the Save icon on the Content Editor ribbon at the top of the page.

Publish the Table Item:

  1. After configuration edits are complete, right-click on the Table item in the Content Tree and select Publish Item from the menu.
    1. Select Smart publish and check the Publish subitems box.
    2. Click on the Publish button.
  2. Add content to the table in Page Builder.


After configuration edits are complete in Content Editor, return to Page Builder.

In Page Builder:

  1. Reload the canvas in Page Builder.
  2. Click on a specific Table cell and enter desired text.


Quick tip: To add basic styling, wrap text in the following HTML tags:

  • Bold: <b>InsertTextHere</b>
  • Italic: <i>InsertTextHere</i>
  • Link: <a href=”https://website-url-example.edu”>InsertTextHere</a>

  1. After completing edits, click Publish to publish the changes to the live page.

In Content Editor:

  1. If the Table component does not appear in the Content Tree, close the page’s Data node and expand it again to refresh the Content Tree. Then in the Content Tree, expand Content > MSU > sitename > Home > page name > Data or wherever the component was added.
  2. Locate and expand the Table component in the Content Tree.

Add a row:

  1. Right-click on the Table item in the Content Tree.
  2. Click Insert and Table Row in the menu.

Add content to a row:

  1. Locate and select the desired row.
  2. Enter text for each column in use.
  3. Click Save.
  4. Repeat for additional rows.

Publish changes:

  1. After content edits are complete, right-click on the Table item in the Content Tree and select Publish Item from the menu.
  2. Select Smart publish and check the Publish subitems box.
  3. Click on the Publish button.


Examples

For a live demo of the Table component, view the Demo: Information-Focused Content Components page.

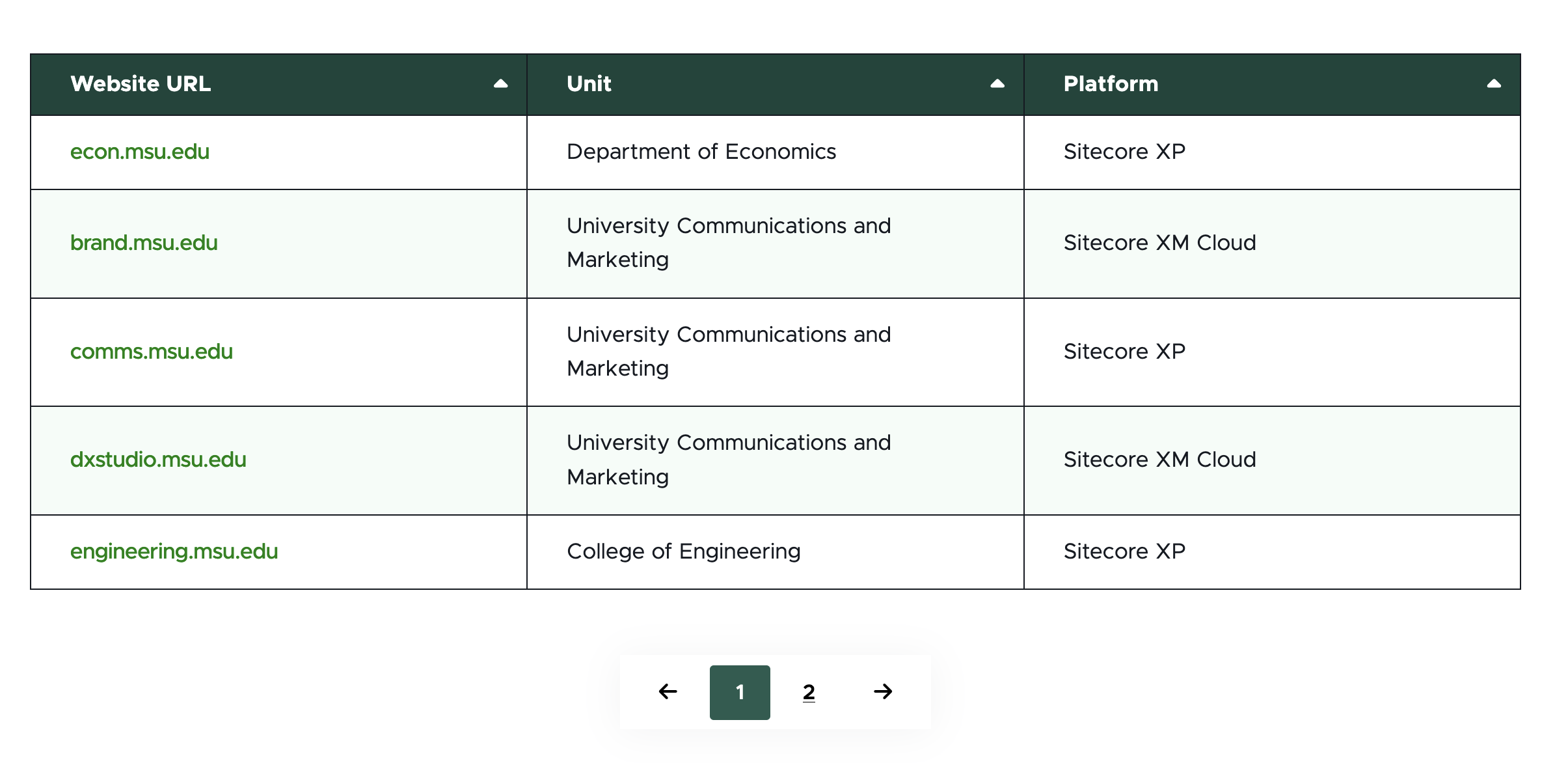

A screenshot of a basic table
Figure 7: A screenshot of a table with basic functionality.

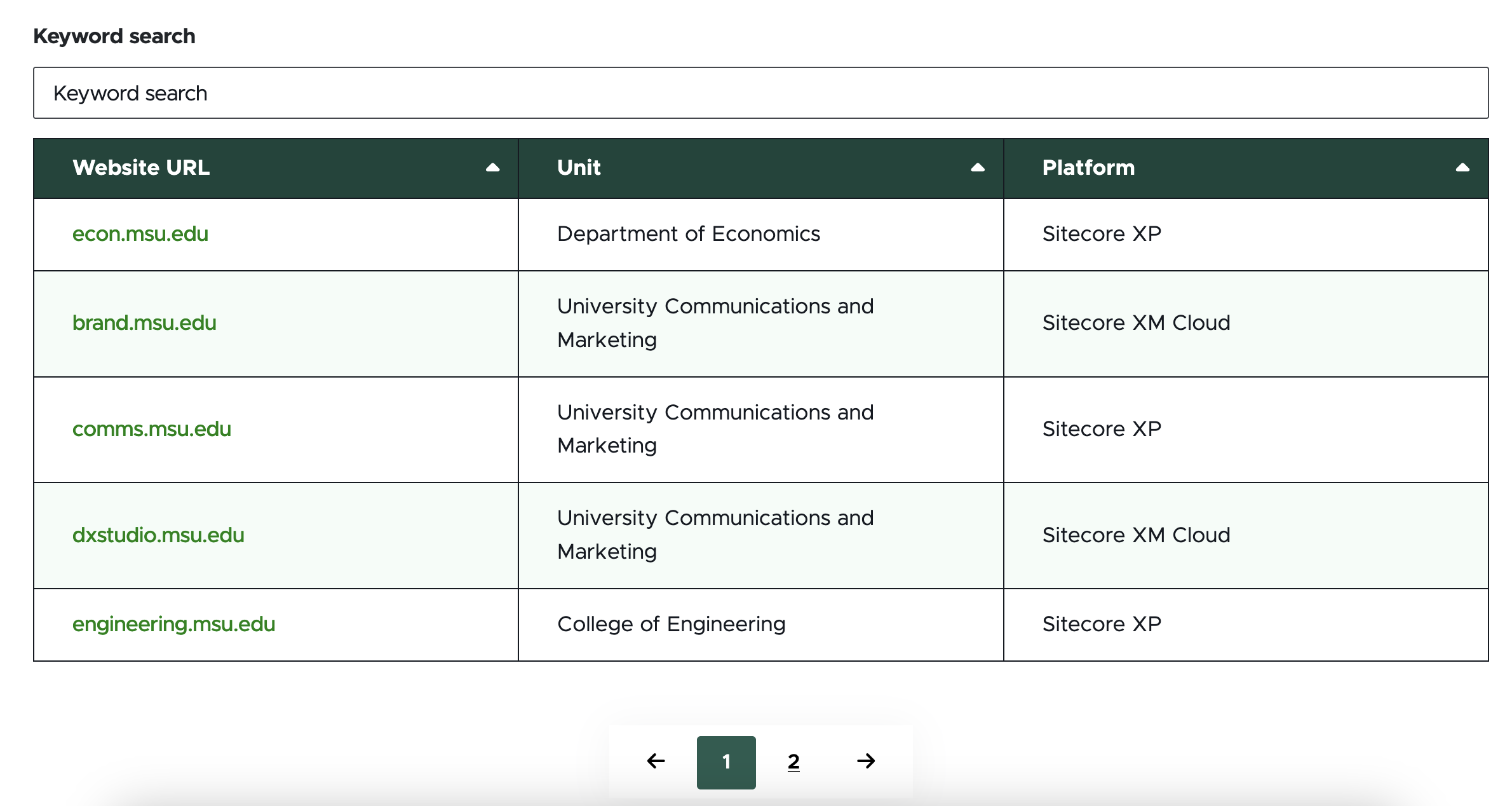

A screenshot of a table with a keyword search field
Figure 8: A screenshot of a table with keyword search functionality enabled.

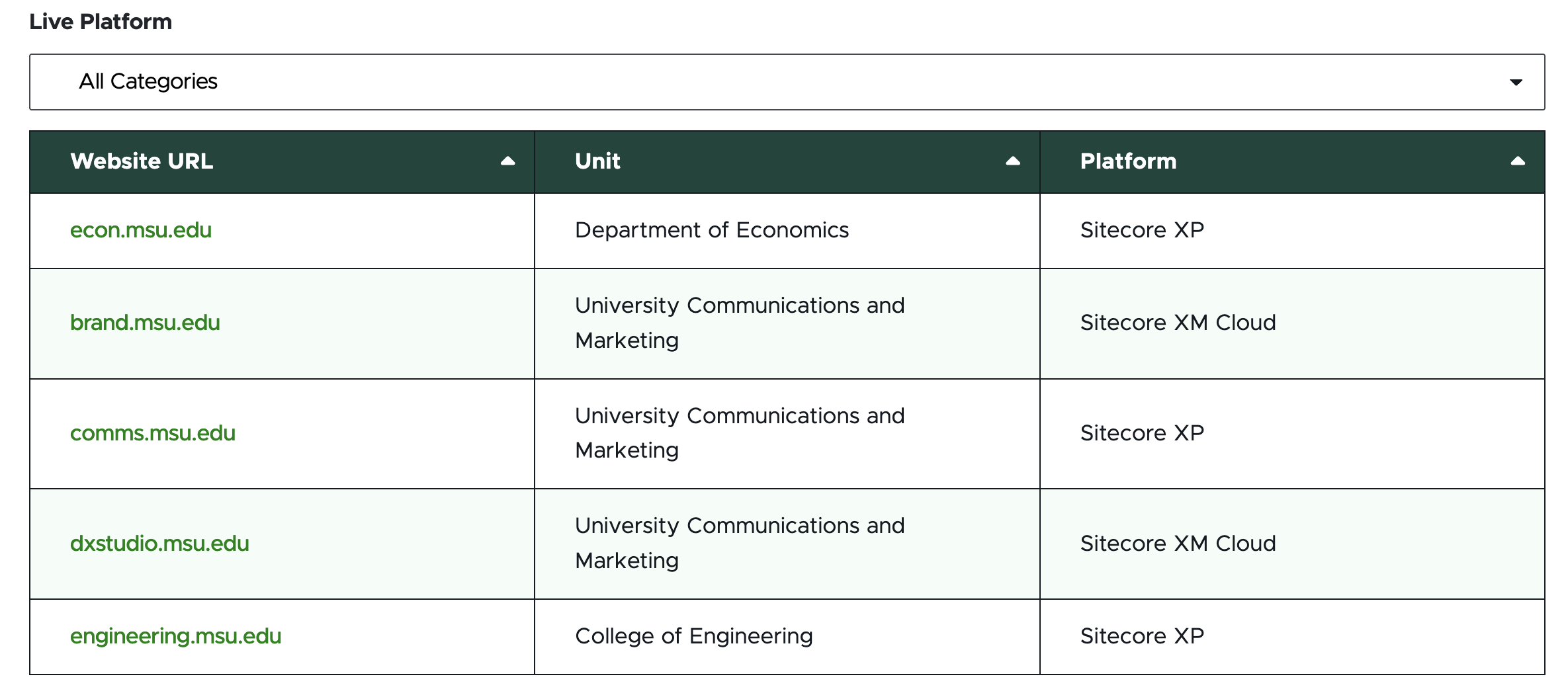

A screenshot of a table with one category filter menu

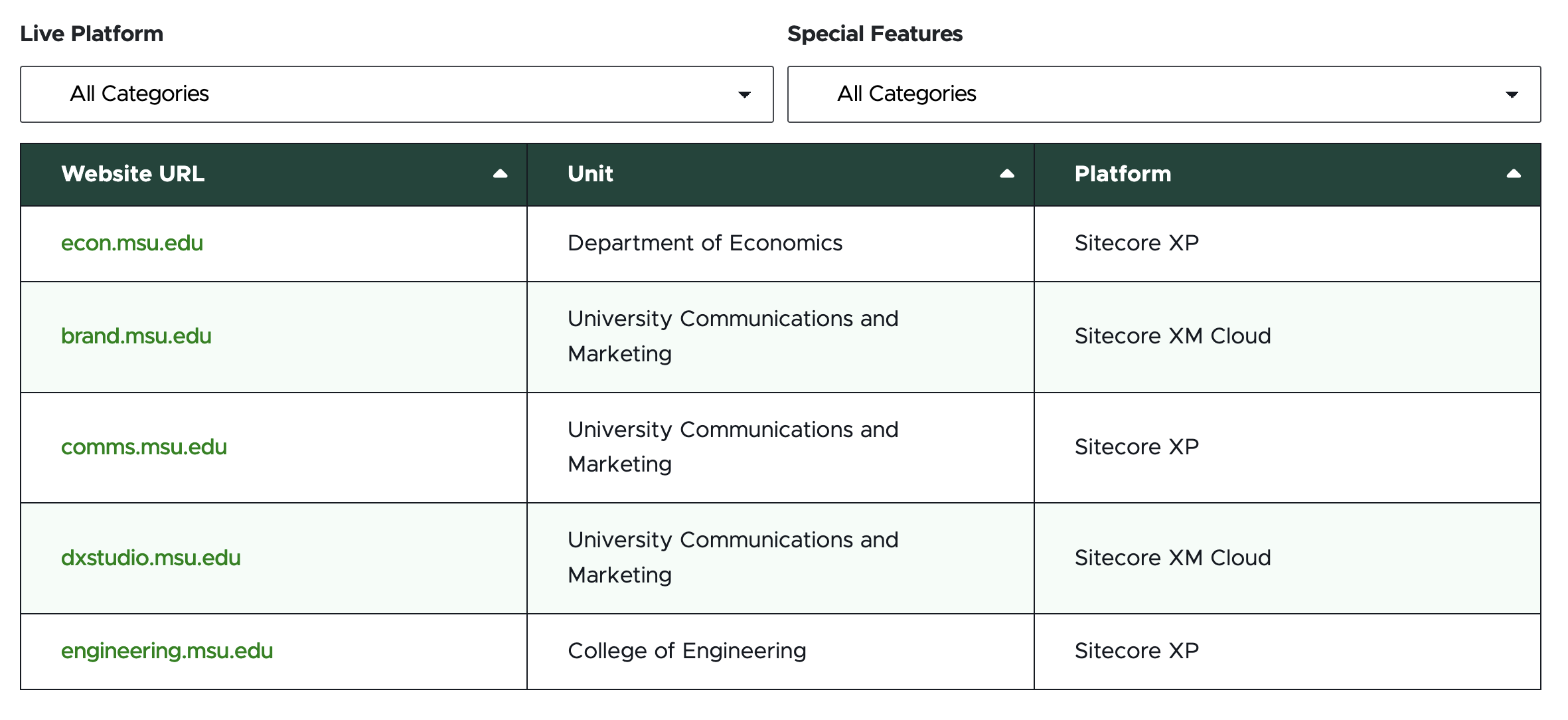

A screenshot of a table with two category filter menus
Figure 10: A screenshot of a table with two category filters enabled.

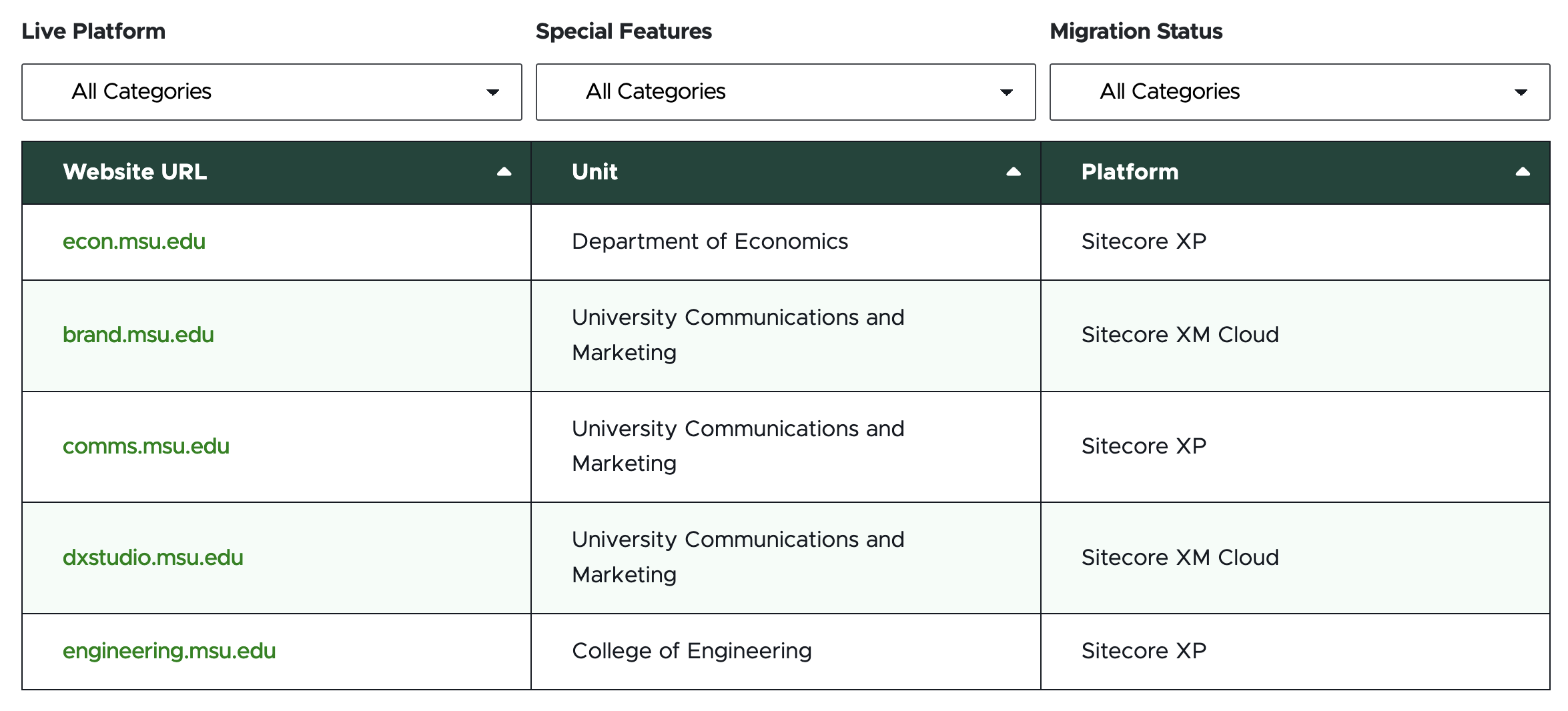

A screenshot of a table with three category filter menus
Figure 11: A screenshot of a table with three category filters enabled.

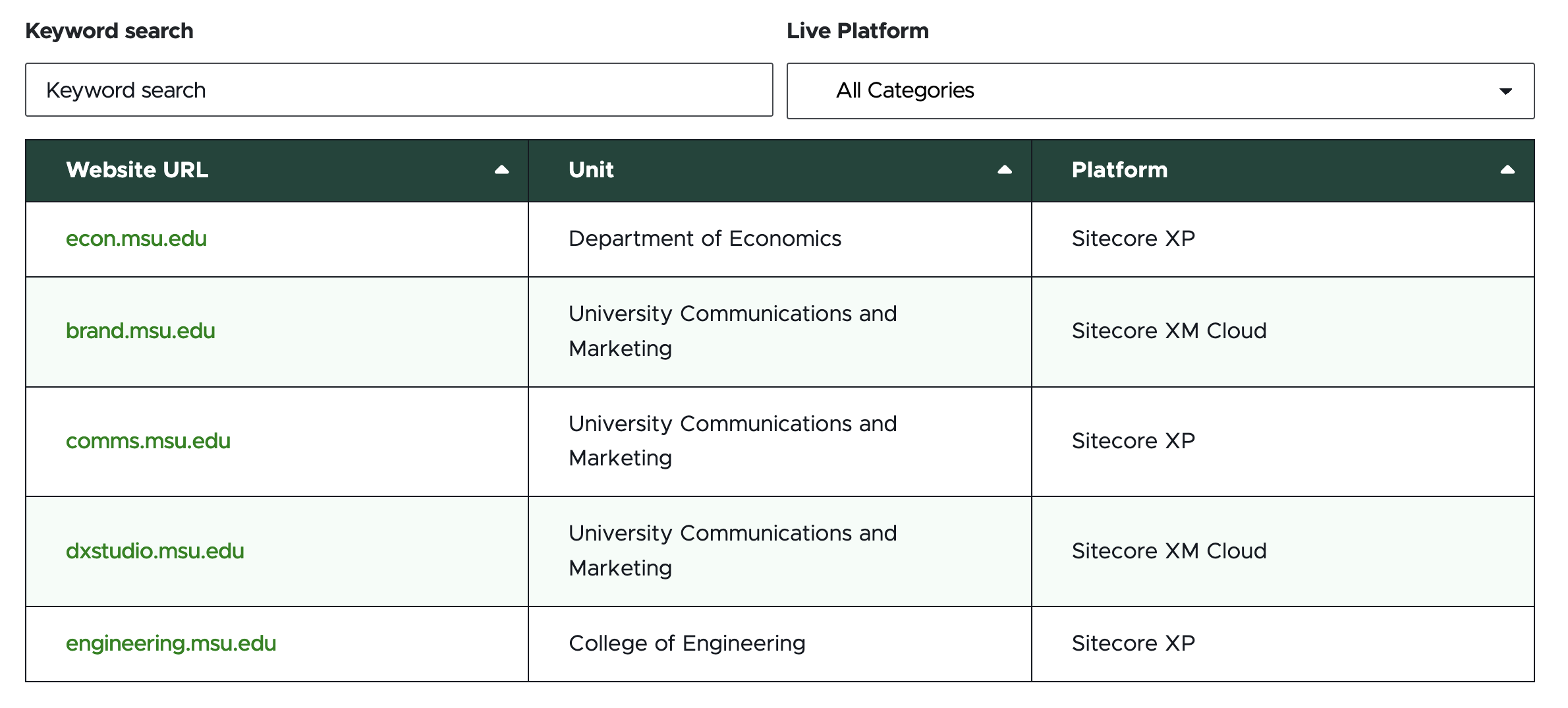

A screenshot of a table with a keyword search field and one category filter menu
Figure 12: A screenshot of a table with keyword search and one category filters enabled.

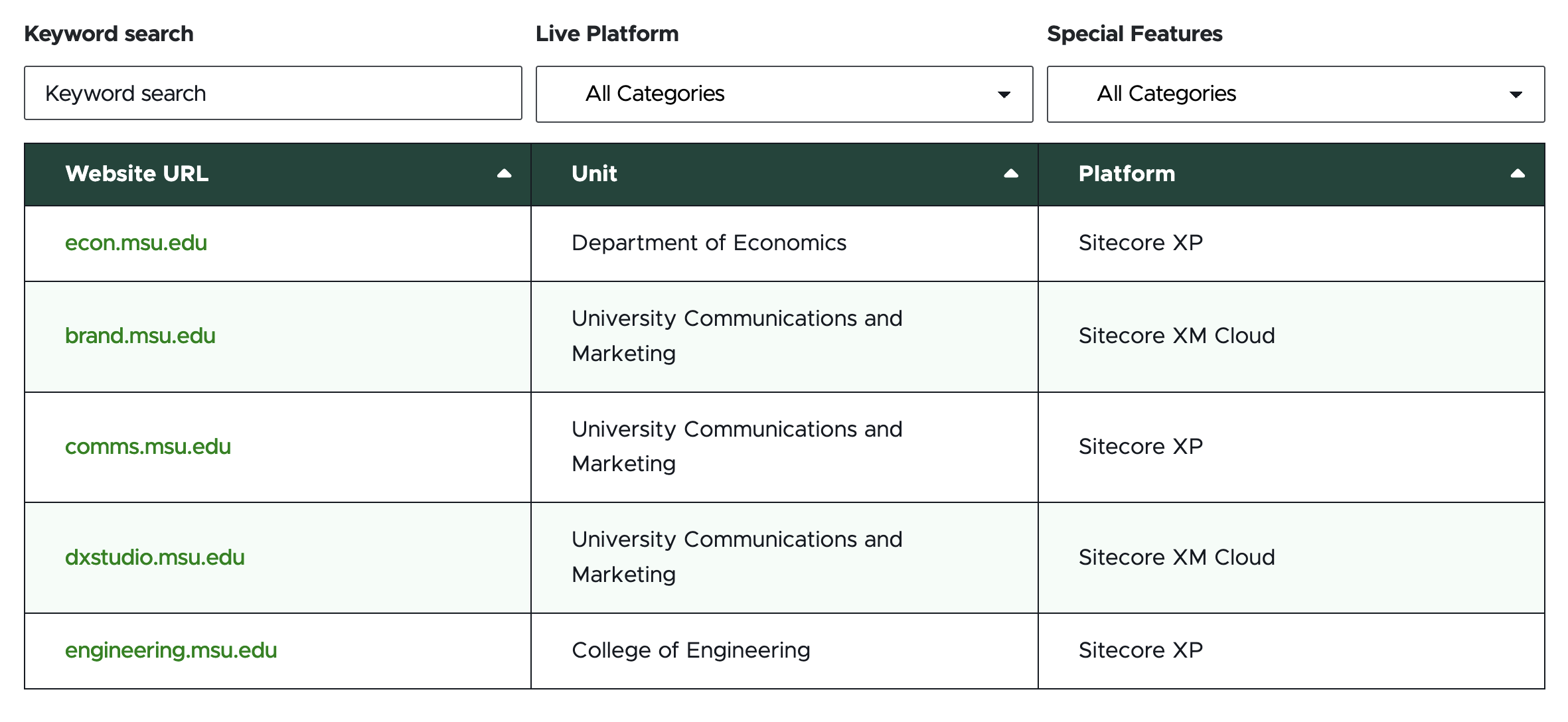

A screenshot of a table with a keyword search field and two category filter menus
Figure 13: A screenshot of a table with keyword search and two category filters enabled.
A screenshot of a table with a search box and category filter options
Figure 14: A screenshot of a table with keyword search and three category filters enabled. Pagination numbers appear below the table grid.

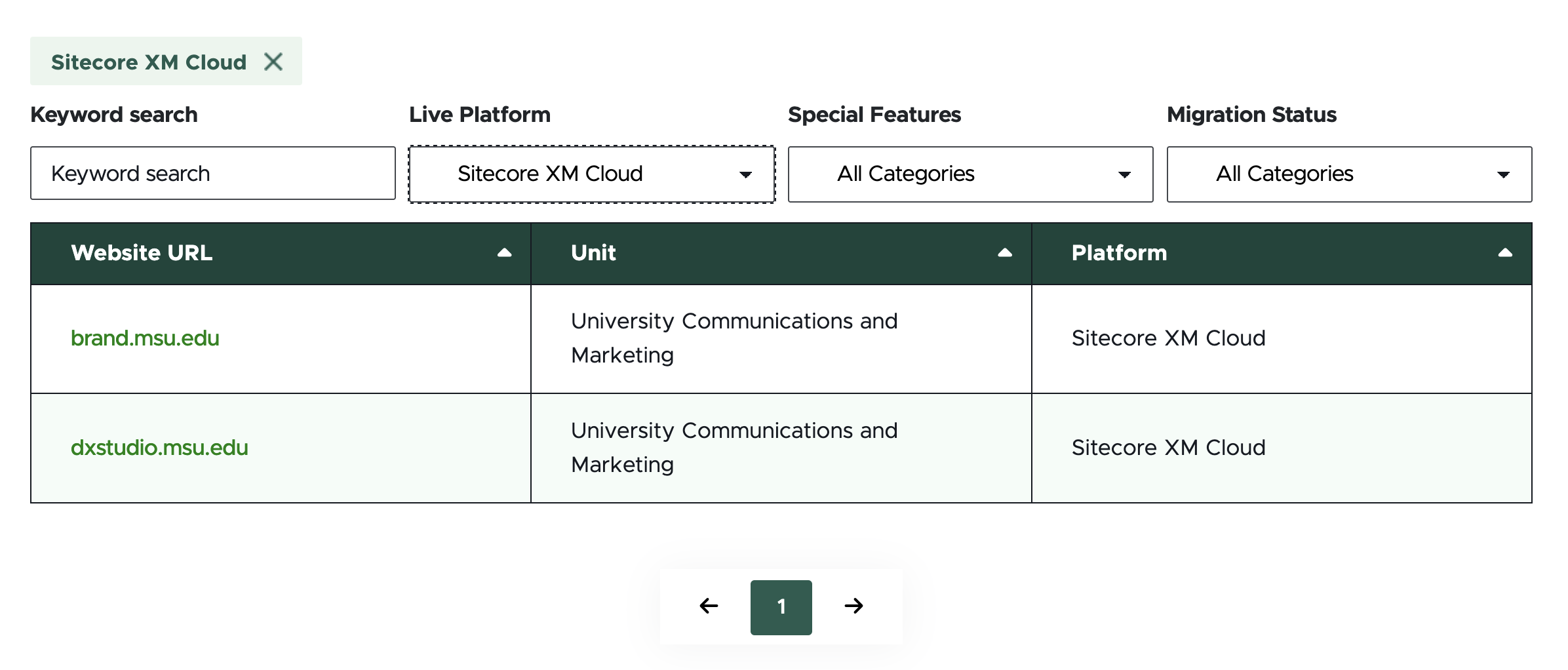

A screenshot of a table with active filters
Figure 15: A screenshot of a table with a category filter applied to the table data. The selected filter appears with a tag above the table grid.

Tool Use Guide

 Page BuilderExplorerContent Editor
Add componentOptimal
Add table rowsPossible Optimal
Add table columns  Optimal
Add row and column headers  Optimal
Add content to table cellsPossible Possible
Adjust column width  Optimal
Add pagination  Optimal



Documentation updated: Feb. 12, 2025
